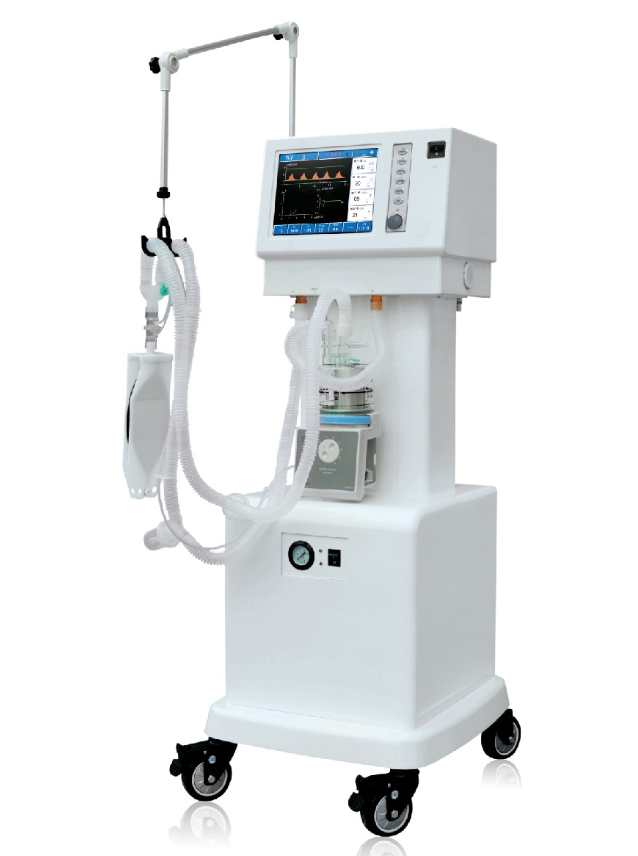

ICU呼吸机2000B2
10.4”TFT彩色液晶显示屏，操作简单便捷
Ventilation Mode:

VCV，PCV，SIMV，PSV，PSV SIMV，CPAP

Ventilation Function:

PEEP，SIGH，Standby，IP，IRV

warranty:

1 year

联系客服 产品手册PDF
产品中心
超声波系统
实验室设备
手术室设备
病房产品
内窥镜/氧气治疗
产品详情

2000B2呼吸机是一款采用气动、电子控制、微电脑技术的多功能呼吸机，采用进口元件，运行稳定可靠，10.4英寸彩色液晶屏显示各种测量和配置参数，非常适合呼吸治疗，适用于医院急救科、外科、妇科、儿科、ICU等科室。ICU科室使用需连接机上气源接口。


■显示模式

高清10.4英寸TFT彩色LCD显示屏，操作简单便捷



■通风模式

VCV，PCV，SIMV，PSV，PSV SIMV，CPAP


■通风功能

PEEP，SIGH，待机，IP，IRV



■Ventilation Parameters

Tidal volume:20～2000ml

Rate:2～120bpm

SIMV rate:2～20bpm

I:E:4:1～1:8

Inspiratory trigger pressure:-10～20 cmH2O

Flow trigger sensitivity:1-20L/min

PEEP:0～25 cmH2O

Pressure control:3～60 cmH2O

Pressure limit:5～60 cmH2O

Pressure slope:1～10 gear

Flow rate setting:1～10 gear

Expiratory trigger sensitivity:10%～90%

Time control:1～10s

SIGH:1.5 times the inspiratory time（60-120 times adjustable）

Inspiratory platform:0～50%

Oxygen concentration:21%～99%



■Parameters For Ventilation Monitoring

VI tidal volume, VE tidal volume, Minute Ventilation volume,  IPPV rate, SIMV rate,  total respiratory rate, autonomous breathing rate, I/E, peak pressure of airway, average pressure, PEEP, Inspiratory trigger pressure, inspiratory platform, oxygen concentration, battery capacity , pressure - time waveform, flow rate - time waveform, flow-volume loop, pressure –volume loop



■Security Alarm System

Oxygen Concentration Alarm: Upper limit setting range:21%～99%,Low limit setting range:15%～80%

Airway Pressure Alarm: Upper limit setting range:1～60 cmH2O,Low limit setting range:0～50cmH₂O

Per-minute Ventilation Volume Alarm: Upper limit setting range:1～30L/min, Low limit setting range: 0～20L/min

Tidal Volume alarm: Upper limit setting range:10～2000ml,Low limit setting range   0～1800ml

Respiratory rate：Upper limit setting range 10～99bPm;Low limit setting range 0～50 bPm

Sustained High Pressure Alarm: It will give alarm when stress have consistently been higher than 25 cmH2O for 15s.

Low Battery Level Alarm: It will give alarm when battery level is less than 14±0.5V

Gas shortage alarm

Low pressure of Oxygen alarm

Low pressure of Air alarm

Power alarm

Intubation off alarm

Battery voltage alarm



■Power Supply

AC 100～240V，50/60Hz

Built-in Li Battery (Work at least for 4-6 hours with battery)
