288 × 203 × 275 mm 4.7Kg
Manual Defib Mode AED Mode Pacer Mode Monitor Mode
mains voltage: 100 to 240 VAC (±10%) current: 1.8 to 0.8 A frequency: 50-60 Hz (±3 Hz)
特性

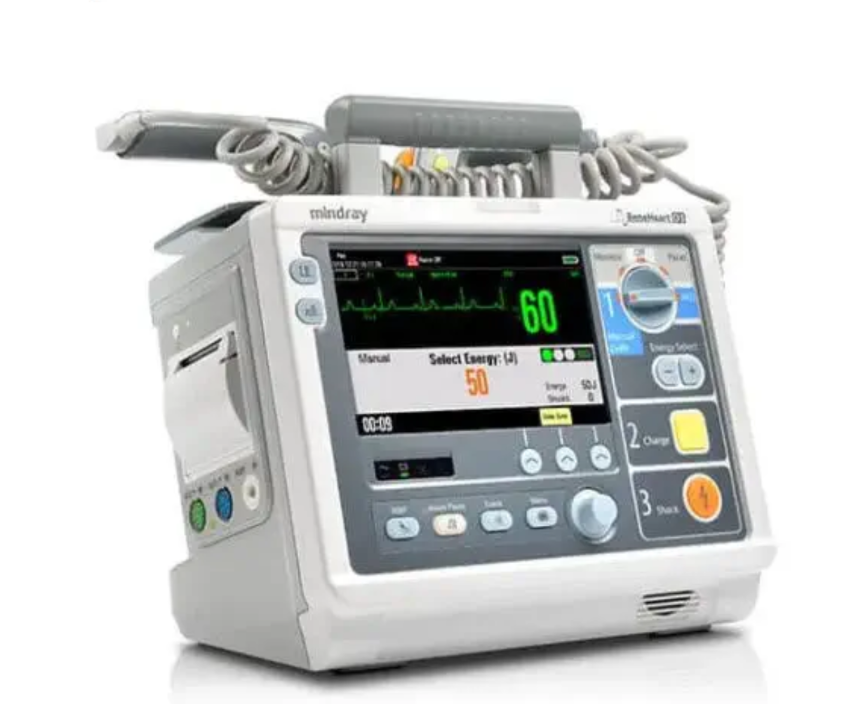

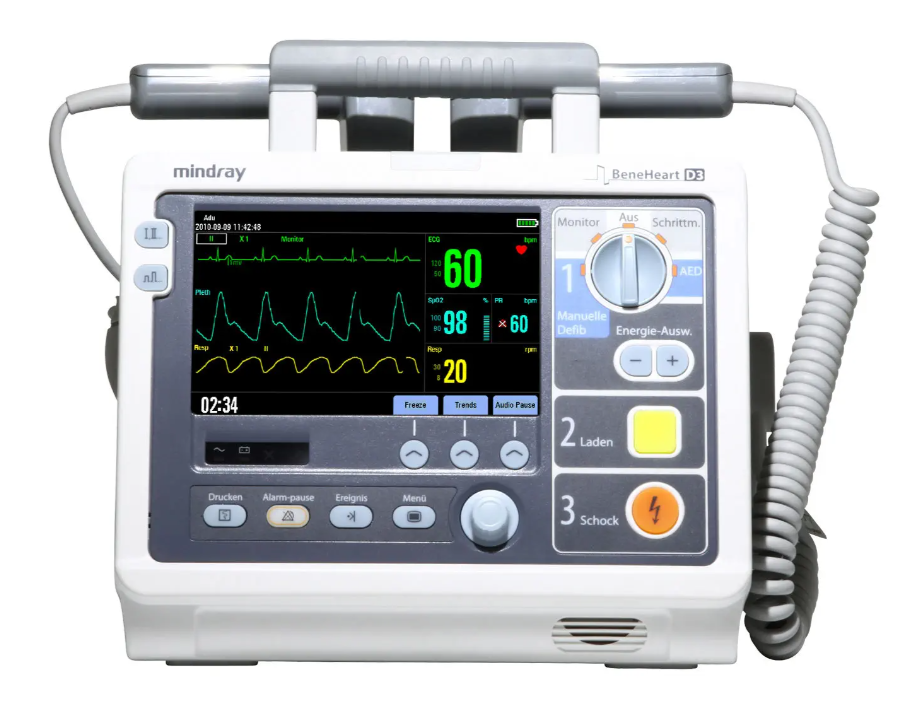

D3 是一款紧凑、耐用、轻便的除颤仪，集监护、手动除颤、自动体外除颤（AED）及起搏功能于一体。它是一款专业的双相除颤监护仪，适用于全球范围内的医院和诊所。
主要特点
- 紧凑的四合一集成设计：集监护、手动除颤、自动体外除颤（AED）和起搏功能于一体。
- 开机时间小于 2 秒，3 秒内充电至 200 焦耳，心电图（ECG）恢复时间小于 2.5 秒。
- 最高可达 360 焦耳的递增剂量能量，最大程度提高除颤成功率。
- 强大的电池供电能力，无需外接电源，在转运过程中可支持长时间连续监护和电击除颤。
- 设计紧凑、重量轻 。
紧凑、轻量化设计
D3是一款便携式除颤器，具备四种操作模式：监护、手动除颤、自动体外除颤（AED）和起搏。
在监护模式下，该设备旨在监测、显示、查看、记录和打印各种生理参数及波形，包括心电图（ECG）、脉搏血氧饱和度（SpO2）和脉率（PR）。
在自动体外除颤（AED）模式下，设备会自动分析患者的心电图节律，并指示是否检测到可电击节律。
在手动除颤模式下，操作人员分析患者的心电图。可使用除颤电极板或多功能电极片进行除颤。在手动除颤模式下，还可以进行同步电复律。
起搏模式可让您进行无创经皮起搏治疗 。
The equipment has the following main functions:
Manual Defib Mode
AED Mode
Pacer Mode
Monitor Mode
Quality standards
EN 60601-2-4, 2011, +A1 2019 Medical electrical equipment - Part 2-4: Particular requirements for the basic safety and essential performance of cardiac defibrillators

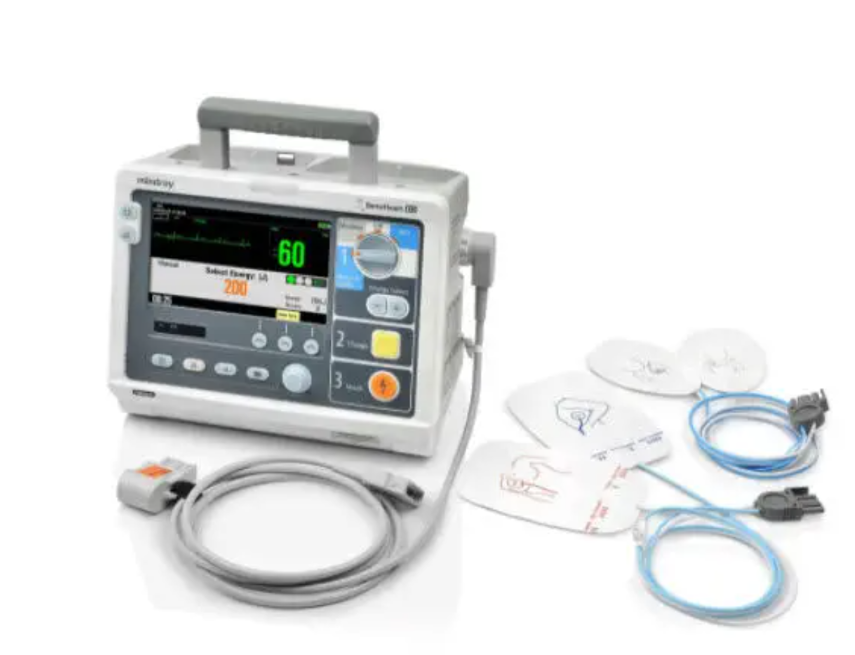

Components
1x) Li-ion battery
(1x) 50 mm recorder
(1x) External paddles Adu/ped
(1x) tubing + adulte cuff (24-35 cm) for NIBP
(1x) conductive gel
(2x) Thermal paper (50mm*20m), set of 3 rolls
(1x) MASIMO SpO2 extension cable
(1x) LNCS DCI adult sensor for MASIMO SpO2
(1x) 5 Leads-ECG trunk cable + wires, clip + electrodes
Technical specifications
Mains power supply:
mains voltage: 100 to 240 VAC (±10%)
current: 1.8 to 0.8 A
frequency: 50-60 Hz (±3 Hz)
DC power supply (with DC/AC adapter):
input voltage: 12 Vdc.
Power consumption: 190 W
Battery: 14.8 V / 3 Ah, intelligent lithium-ion battery, rechargeable and maintenance-free - a battery can be configured.
Charging time:
Less than 2 hours at 80% and less than 3 hours at 100% of with the appliance switched off
Less than 3.5 hours at 80% and less than 4.5 hours at 100% when the power is on
Defibrillation mode: manual defibrillation, synchronised cardioversion, ECD
Defibrillation trace: biphasic truncated exponential biphasic (ETB) trace, self-compensating according to the patient's impedance.
Defibrillation electrodes: set of external paddles supplied with pediatric paddles included, multifunction electrodes.
External defibrillation: 20 to 200 Ω.
Operating conditions:
temperature: 0° to 45°C.
humidity: 10-95% non-condensing
altitude: -381 m to +4575 m
Dimensions
(LxPxH): 288 × 203 × 275 mm
Weight of main unit: 4.7kg
Battery pack weight: 0.5kg
Weight external pallet set: 0,8kg
