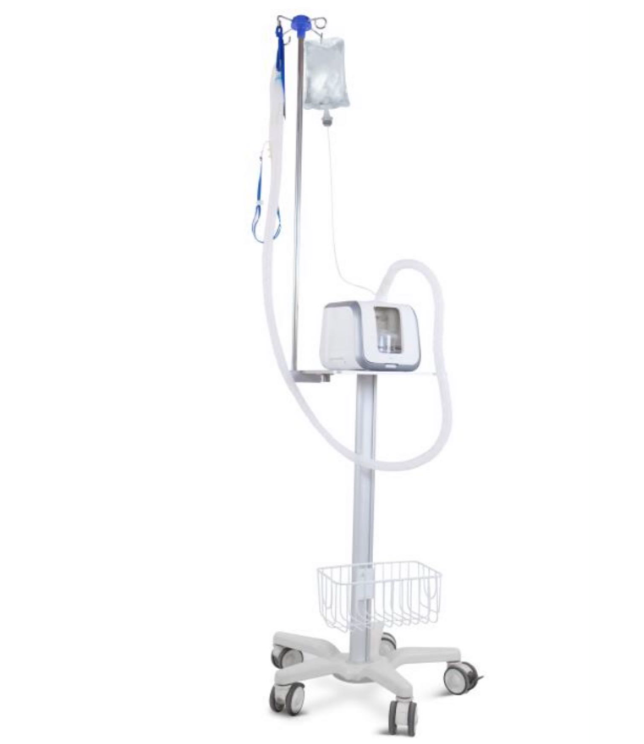

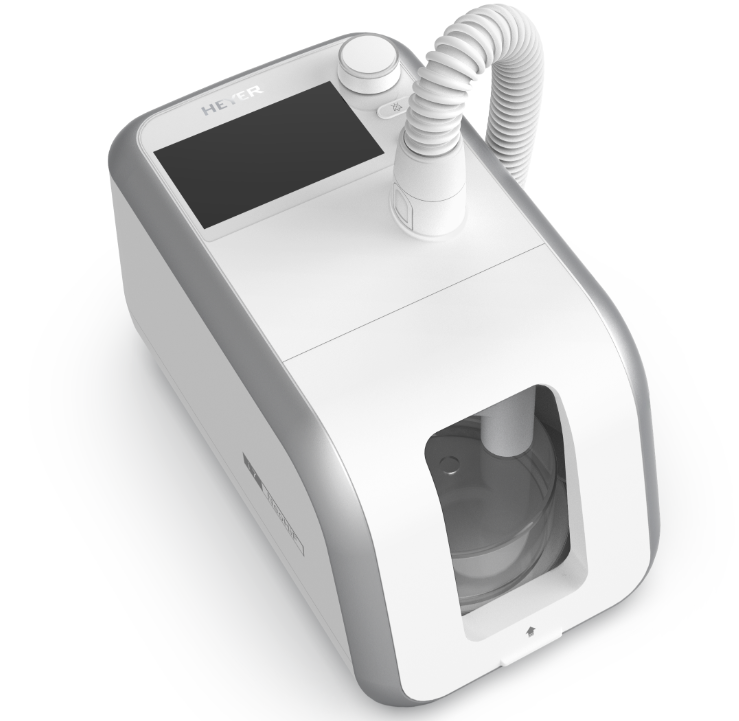

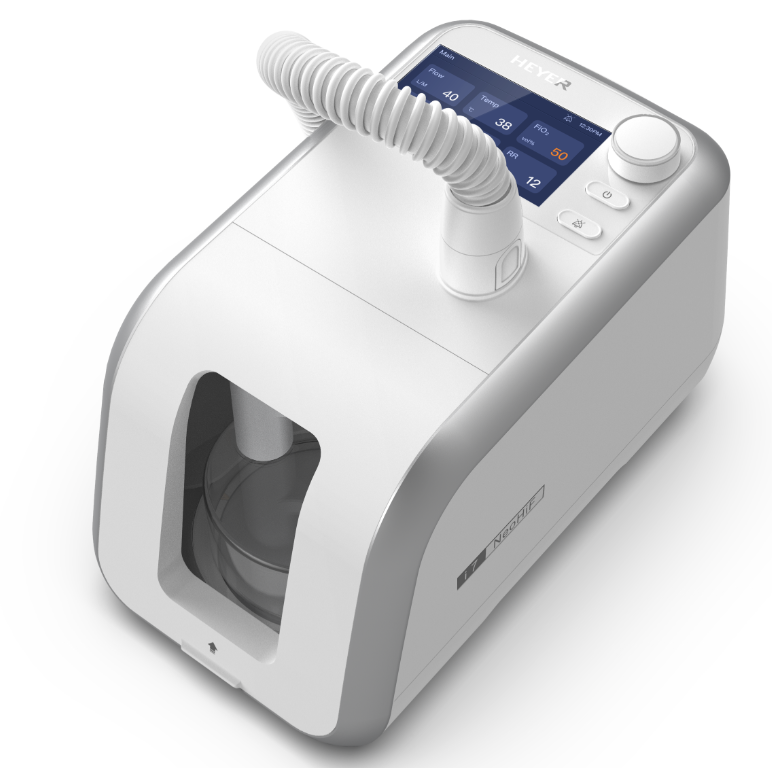

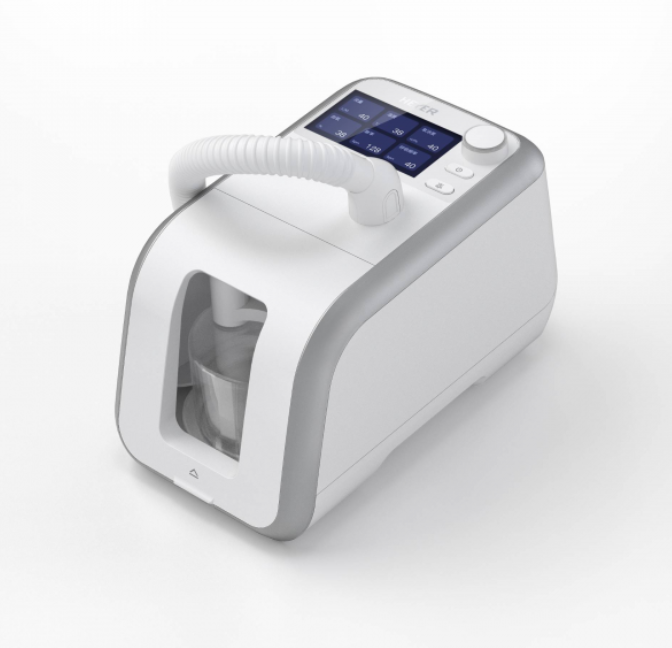

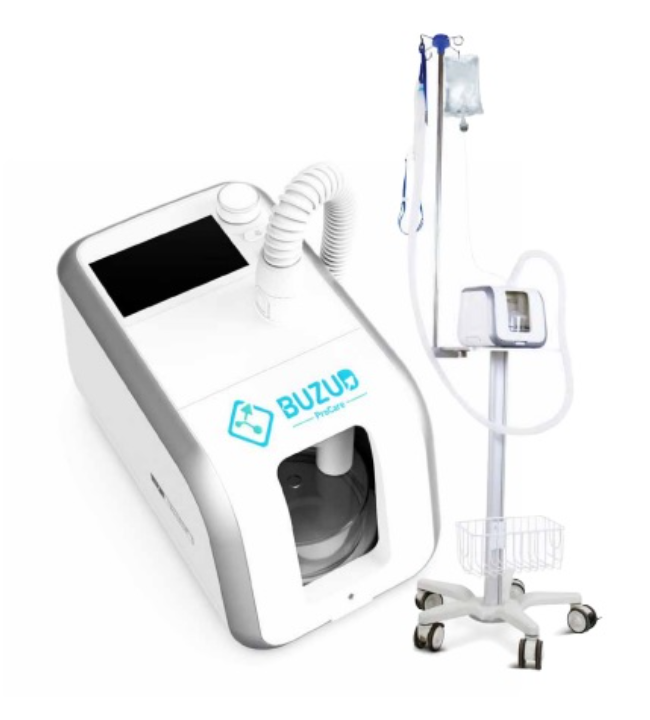

高流量鼻导管 NeoHiF-i7 ICU 呼吸机
AEOMED Neohif-I7 HFNC 医用高流量加热呼吸加湿器，适用于急诊 ICU 神经内科
SPECIFICATIONS PARAMETERS:

High flow range up to 80L/min Unique intelligent voice alarm PM2.5 filter Wide dew-point temperature regulation at 29 to 37 degrees Decomposes oxygen molecules so that oxygen can easily enter blood cells to provide energy for the body, suitable for critically ill patients

:

Treatment Mode: High flow mode, Low flow mode FiO2: 21%-100% (automatic) Dew-point temperature range: 29 – 37 deg continuously adjustable Flow Range: Flowrate 2-80L/min

Dimensions/Weight:

310mmx175mmx185mm 3kG

联系客服 产品手册PDF
产品中心
超声波系统
实验室设备
手术室设备
病房产品
内窥镜/氧气治疗
产品详情

特点


  • 高流量氧气输送：高流量鼻导管 i7 旨在输送高流量氧气，有助于改善呼吸系统疾病患者的氧合。

  • 舒适：鼻导管设计为患者佩戴舒适，柔软的鼻叉可紧密贴合鼻孔。

  • 加湿氧气：高流量鼻导管 i7 输送加湿氧气，有助于防止呼吸道干燥和刺激。

  • 可调节流量：该设备具有可调节流量，允许临床医生定制氧气输送以满足个别患者的特定需求。

  • 易于清洁：鼻导管设计易于清洁，具有可拆卸组件，可在使用之间进行消毒。

  • 多功能：高流量鼻导管 i7 可用于各种医疗保健环境，包括医院、诊所和家庭护理环境。

  • 有效：该设备已被证明可有效改善呼吸系统疾病患者的氧合，减少对更具侵入性的氧气治疗的需求。

  • 经济高效：高流量鼻导管 i7 是一种经济高效的高流量氧气治疗选择，有助于长期降低医疗成本。


  • 微信图片_20250317150926.png

规格参数


  • 处理模式：高流量模式、低流量模式

  • FiO2：21%-100%（自动）

  • 露点温度范围：29 – 37 度连续可调

  • 流量范围：流量 2-80L/min

  • 监测参数：温度、流量、氧浓度、呼吸频率；可选：SpO2、脉搏率

  • 趋势图：1、3、7天趋势回顾

  • 语音警报：标准

  • 氧气传感器：非消耗材料

  • 护士呼叫：标准


  • 微信图片_20250317150952.png

PECIFICATIONS


  • Physical property

  • Dimensions: 310mmx175mmx185mm

  • Weight: 3 kg

  • Chamber capacity: ≥100ml

  • Tube: Length: 1.8 ± 0.18m

  • Environment condition

  • Normal operation

  • Temperature: 18 ~ 28 deg

  • Humidity: 10% – 95%, non-condensing

  • Atmospheric pressure: 70kPa – 106kPa

  • Electrical properties

  • Power: 100-240 VAC, 50/60 Hz, 1.5A-2.5A

  • Safety Type: Class II, BF

Waterproof level: IP21


  • Noise: When flow is 80L/min, the A-weighted sound pressure level of noise is not more than 45 dB

  • Chamber performance

  • Temperature regulation range: 29ºC to 37ºC

  • Air temperature at patient junction: < 43ºC

  • Humidifying capacity: Target temperature is 29 – 36ºC, the humidity is higher than 12 mg/L. Target temperature is 37ºC, the humidity is higher than 33 mg/L.

  • eating plate power: < 160W

  • Regulating range of FiO2: 21% – 100%

  • Flow regulation range

  • In low flow made, setting range: 2L/min – 25L/min

  • In high flow made, setting range: 10L/min – 80L/min

Preheating time:


  • 23ºC, flow 35L/min, delivery gas temperature reaches 29ºC in 10 minutes, and reaches 37ºC in 30 minutes.

  • Accuracy of oxygen sensor: The monitoring accuracy is ± (2.5% volume percentage +2.5% gas concentration)

  • SpO2 Monitoring Monitoring range: 35 – 100%, monitoring accuracy is ±2% of reading when ≥70%, less than 70% undefined

  • PR Monitoring: Monitoring range 30 – 240 PR/min, monitoring accuracy ±3 PR/min or ±2%, take the maximum

  • PP Monitoring: Monitoring range 4 – 45BPM, monitoring accuracy ± 15% or ± 4 times/min, take the maximum

NeoHiF i7 Respiratory Humidifier Description:

  • NeoHiF Series provide effective respiratory treatment for patients by high flow & exact humidification with a warm Air-O2 mixture.

  • Offering accurate oxygen concentration, which rapidly improves patient’s oxygen level, remains the normal operation of airway

  • mucociliary hair.
