Philips iE33 Philips EPIQ 5 Philips EPIQ 7 Philips Affiniti 70 Philips Epiq 7
Sector, Volume Sector
Adult/Pediatric Cardiac, Abdominal Vascular, TCD

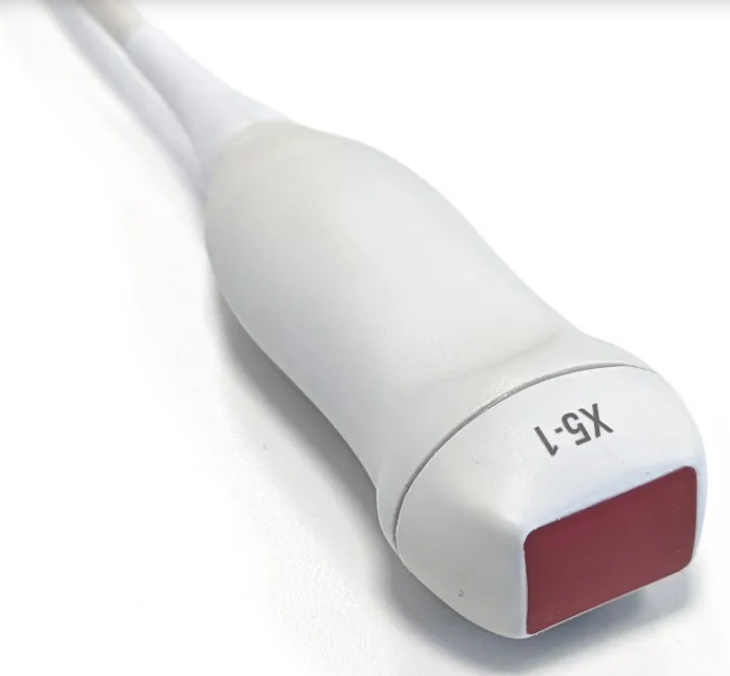

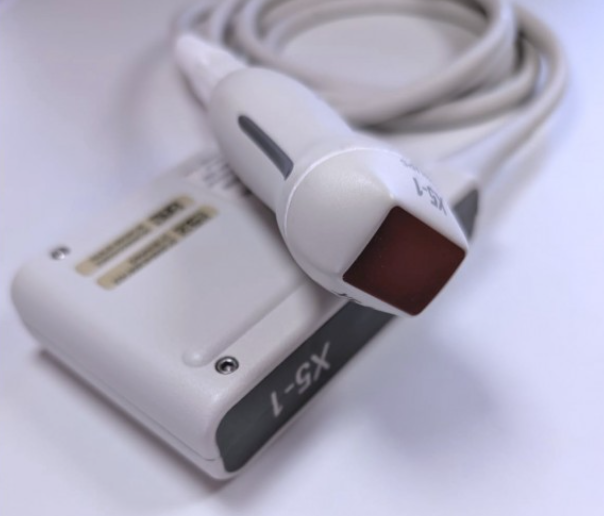

飞利浦超声波探头和换能器 X5-1
飞利浦 X5-1 是一款相控阵 xMatrix 超声波换能器，主要用作心脏病学探头。其频率为 1.0-5.0 MHz。Xity Medical 提供的此探头已在我们通过 ISO 13485 认证的探头实验室中经过全面测试，并提供保修。
模式
2D、M 模式、彩色 M 模式、PW、CW、彩色、TDI、TDI PWD、xPlane、实时 3D、实时 3D 彩色、谐波成像、高级 XRES、2D/实时 3D LVO、iRotate 和 xPLANE
应用
成人/儿童心脏、腹部血管、TCD
Array Type
Sector, Volume Sector
适用于：
Philips iE33
Philips EPIQ 5
Philips EPIQ 7
Philips Affiniti 70
| Technology | xMATRIX, PureWave | Number of elements | 3040 |
| Frequency range | 5 - 1 MHz | Array Type | Sector, Volume Sector |
| Aperture | Proprietary | Field of view | 90° |
| Volume of field of view | 98° x 98° | Modes | 2D, M-Mode, Color M-Mode, PW, CW, Color, TDI, TDI PWD, xPlane, Live 3D, Live 3D Color, Harmonic Imaging, Advanced XRES, 2D/Live 3D LVO, iRotate and xPLANE |
| Applications | Adult/Pediatric Cardiac, Abdominal Vascular, TCD | Biopsy capable | NO |
| Image Fusion Navigation capable | NO | Physical dimensions | 9.2 x 3.9 x 2.9 cm (3.6 x1.5 x 1.1 in) LWD |
